Waterflow switches and valve supervisory switches
These are the devices that let a fire alarm panel see what the sprinkler system is doing. A waterflow switch tells the panel that water is moving, which is what generates the alarm and usually the bell and the central station signal. A supervisory switch tells the panel that something about the system has been put in an abnormal condition, most often a valve that has been closed, and that signal is trouble or supervisory rather than alarm.

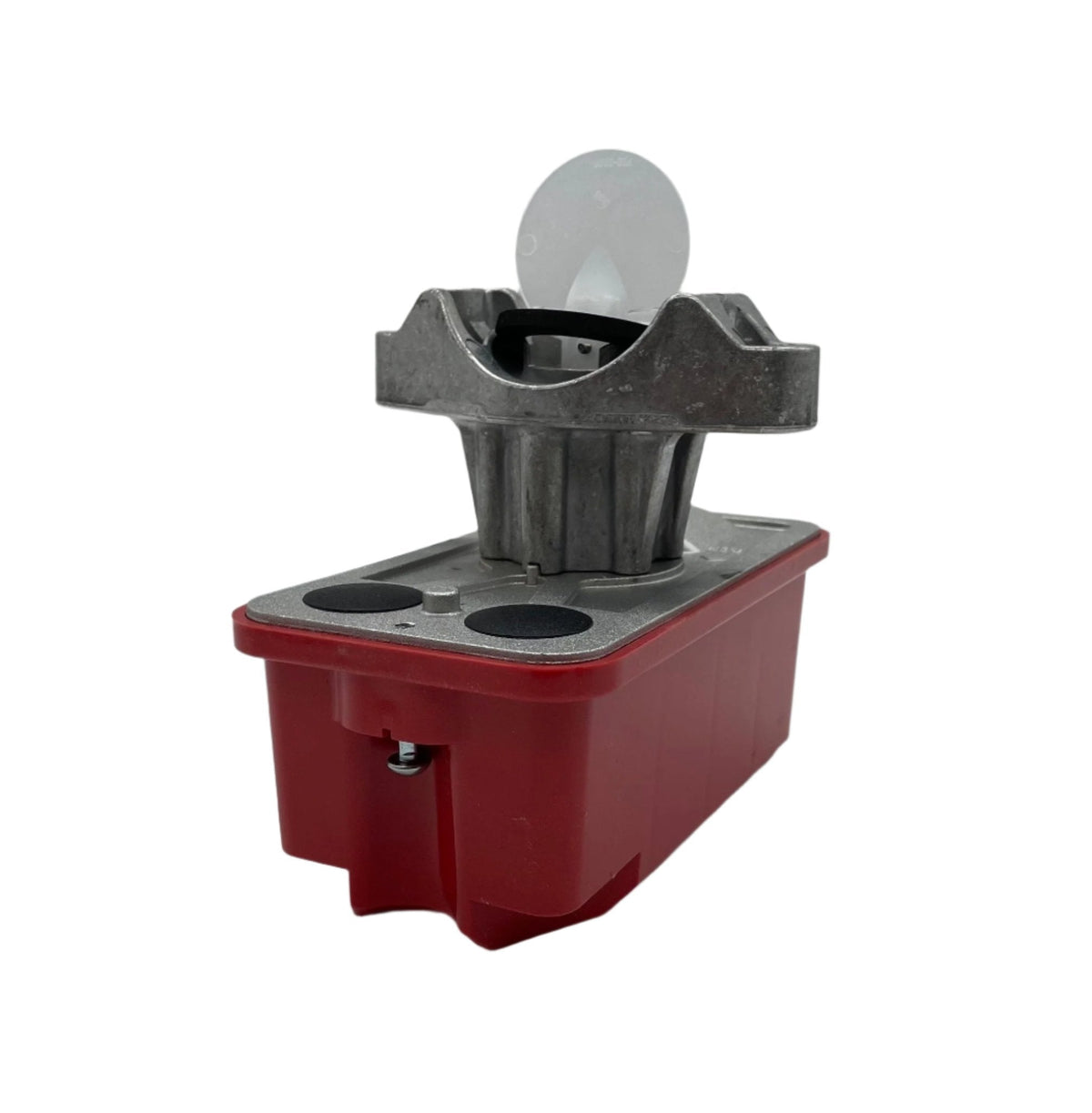

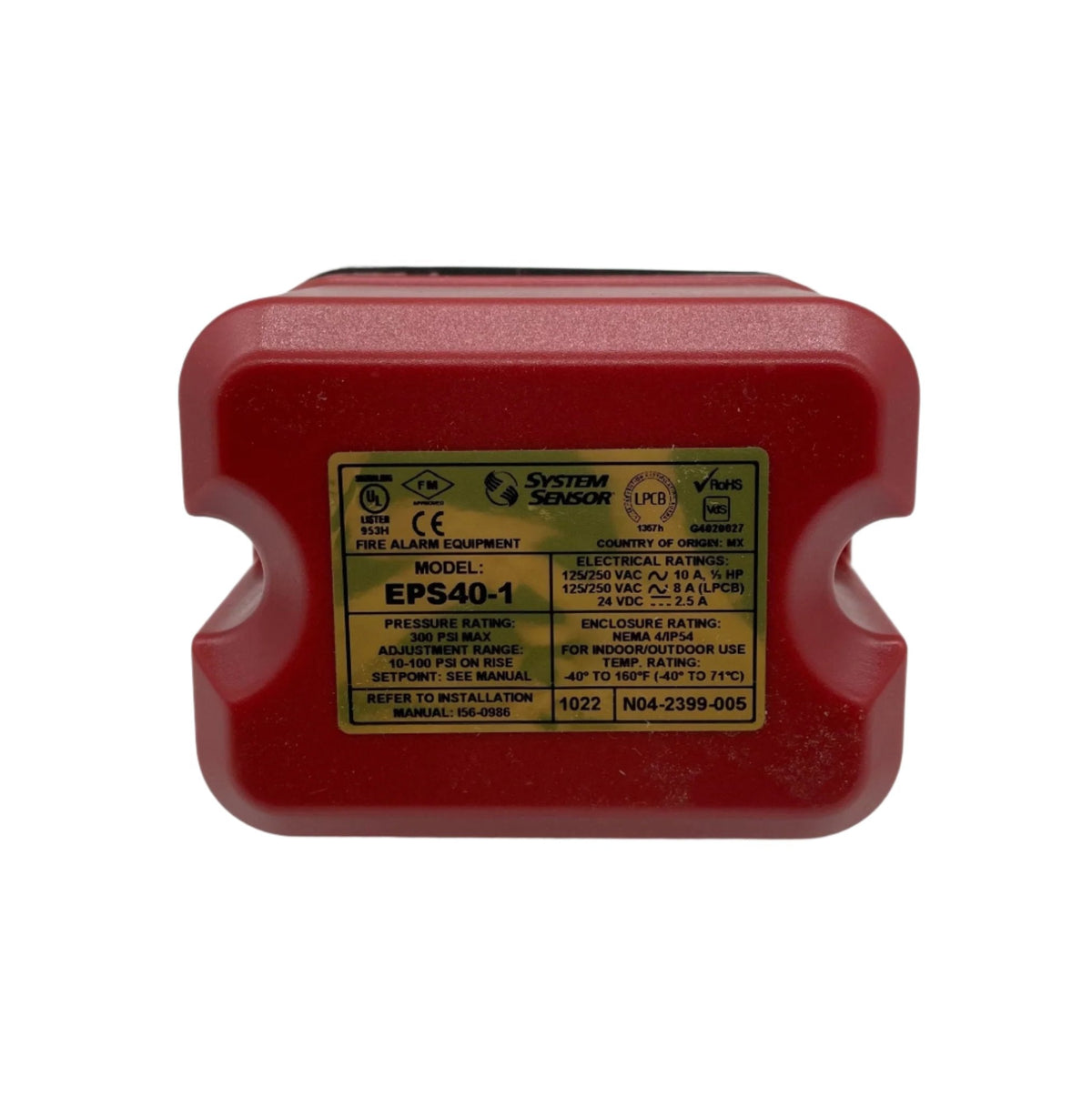

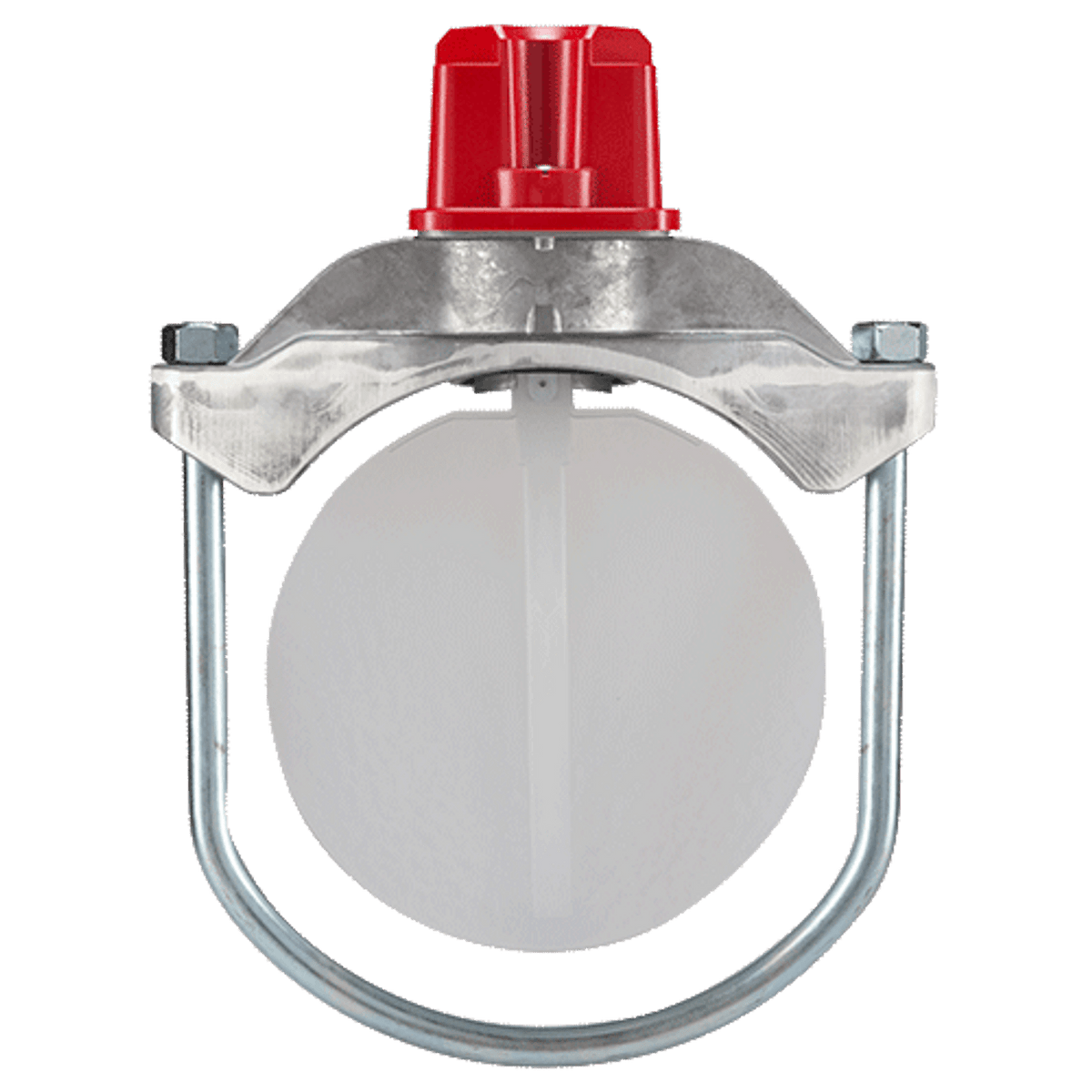

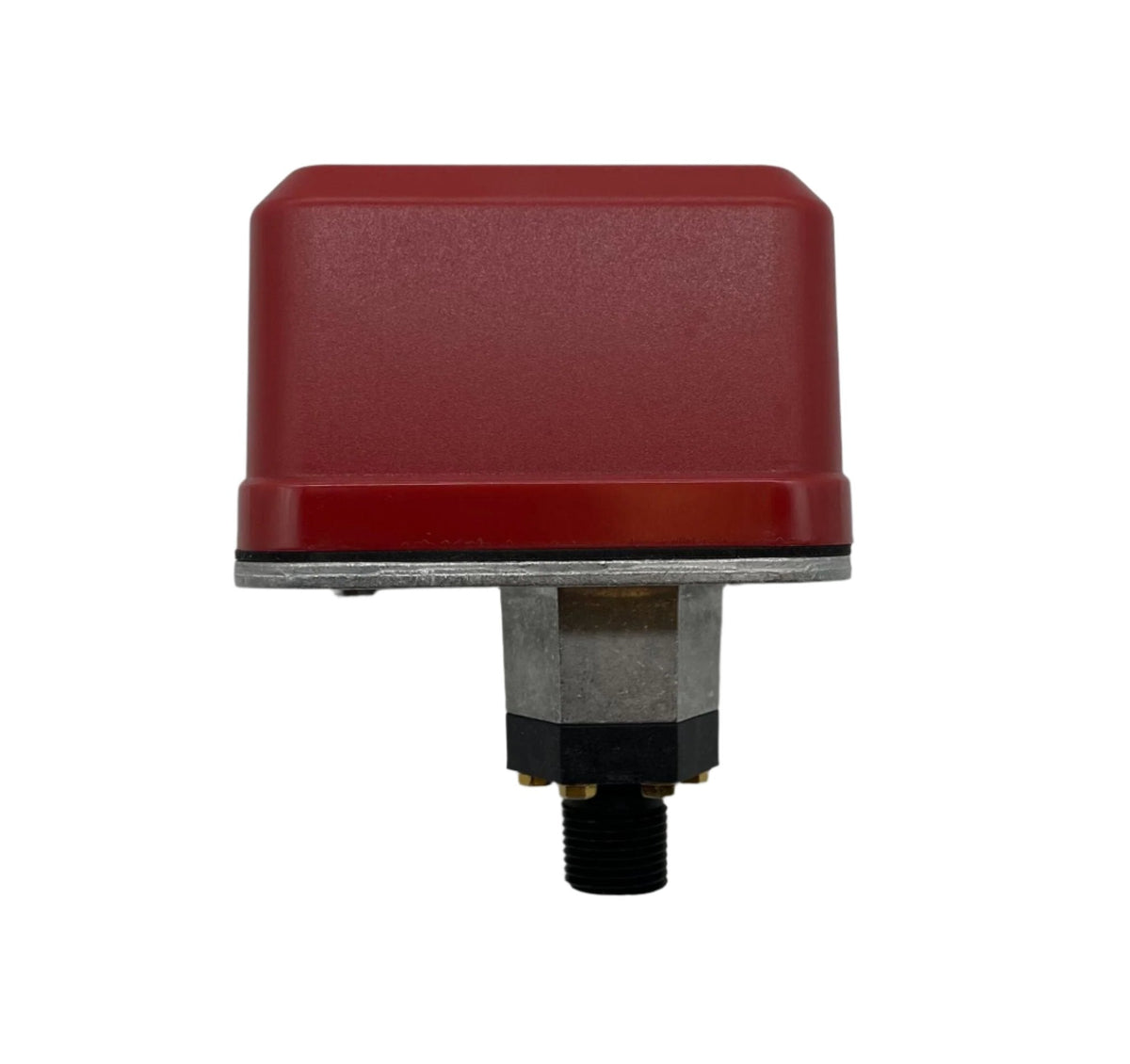

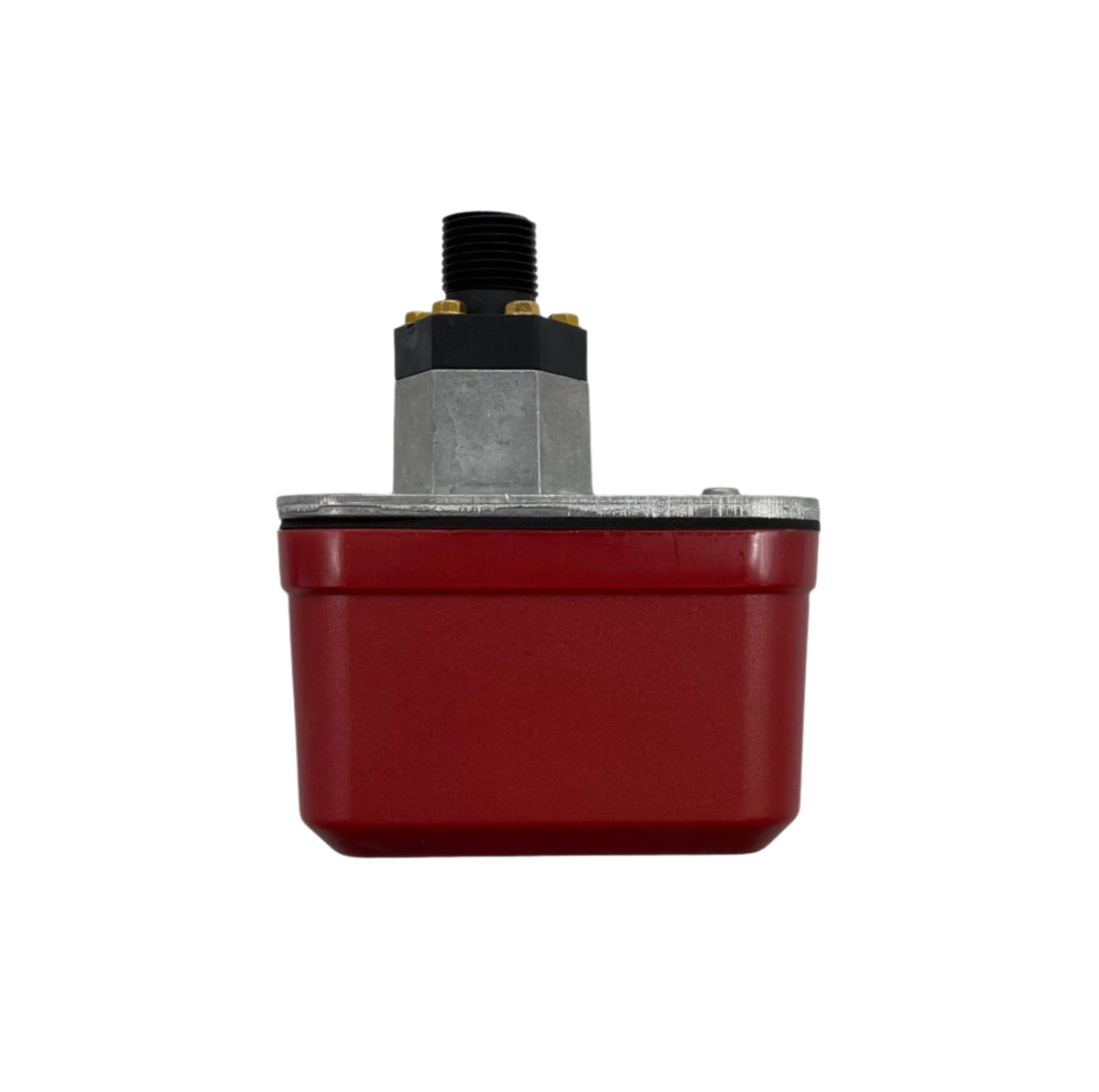

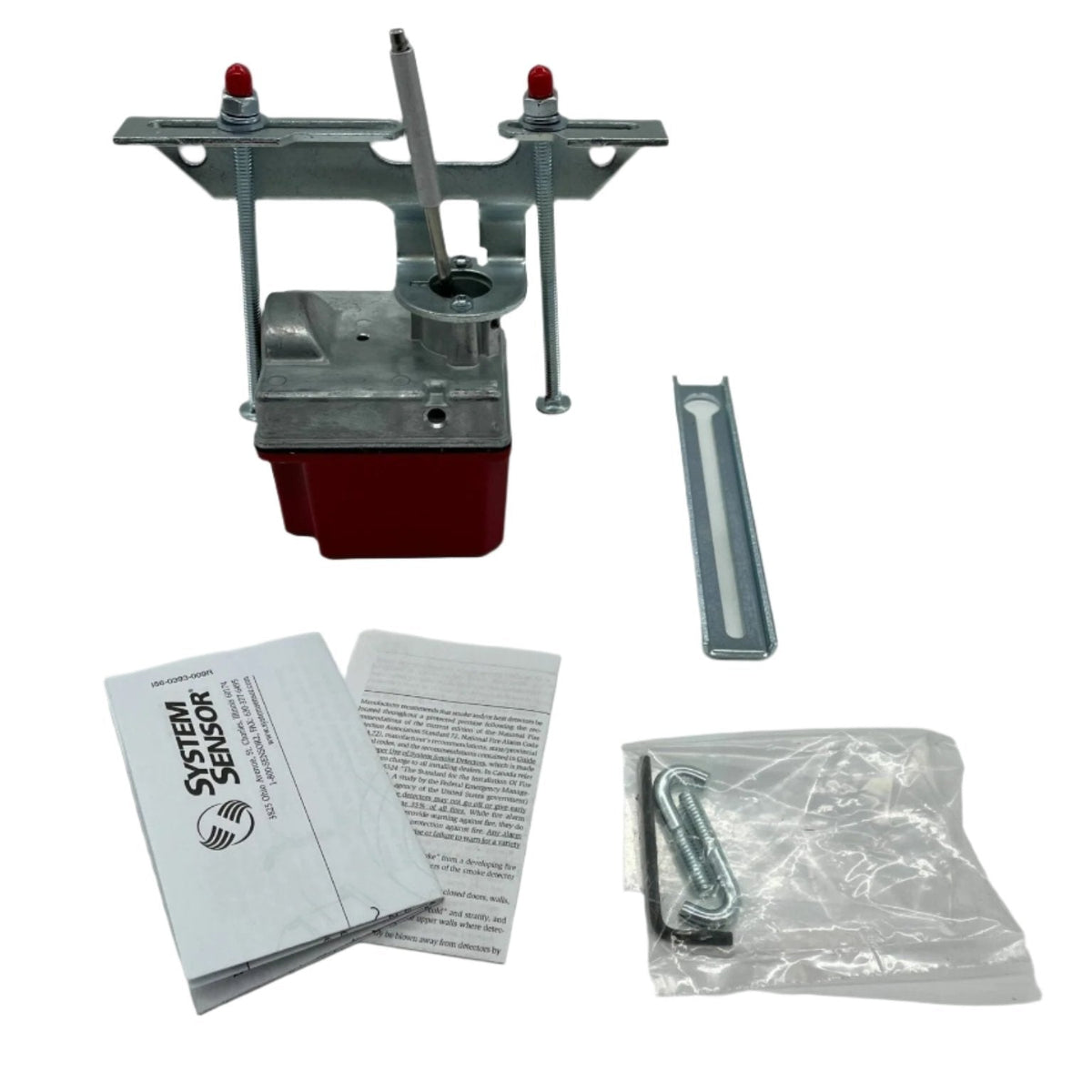

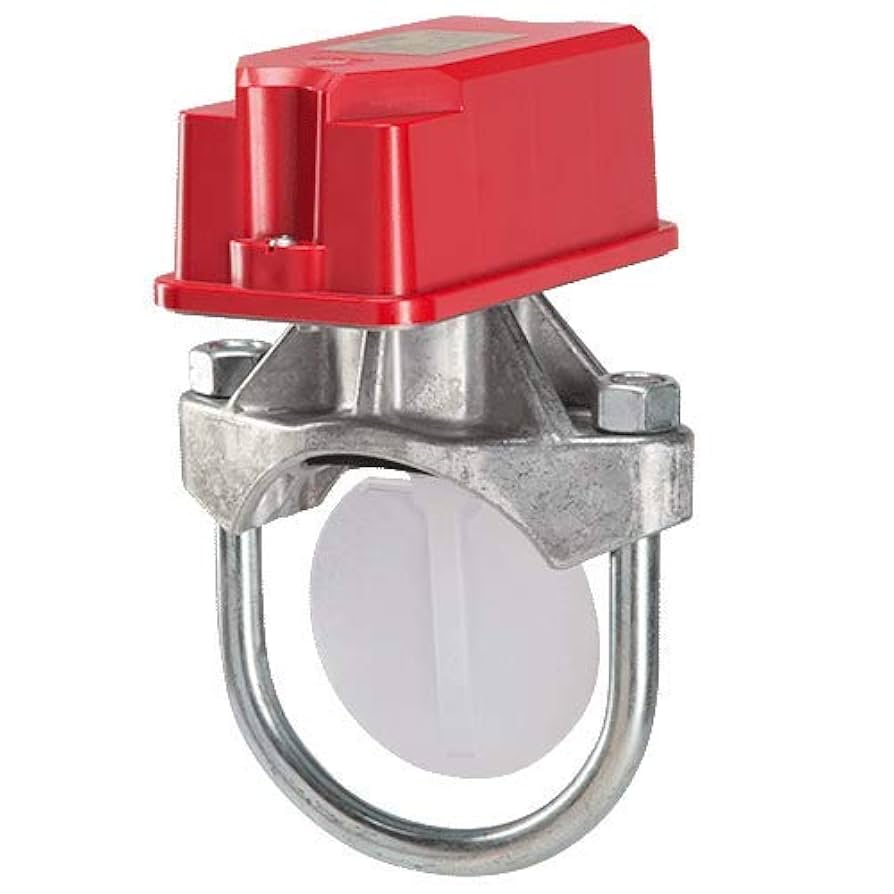

This line covers vane type waterflow detectors and indicators for a range of pipe sizes on schedule 10 and schedule 40 pipe, waterflow alarm pressure switches in single and dual contact versions, high and low pressure supervisory switches, and outside screw and yoke valve supervisory switches that monitor the open position of a control valve.
Choose by starting from the pipe. Match the nominal pipe size and the pipe schedule exactly, because the vane and the saddle are sized to the pipe and the mounting hole. Then confirm the contact arrangement you need, single or dual, since a second set of contacts is often what feeds a separate local device or a building system. On flow switches, confirm the retard adjustment range so surges and pressure fluctuations do not produce false alarms. Pipe sizes, contact ratings and listings are on each product page.
